mjorbit
A Simulation Framework for Space Robotics

This paper presents a general framework for simulating multi-body space robots with contact. Motivated by the increasing demand for on-orbit manipulation, we aim to bring efficient, large-scale robot simulation to space applications. First, we empirically analyze common design choices and their trade-offs when coupling orbit propagation with existing robotics simulation frameworks. Next, we present mjorbit, a general, flexible, and performant simulation framework based on the MuJoCo simulation engine commonly used in robotics, while modeling key spacecraft dynamics, actuators, and sensors. We provide two implementations of mjorbit: a low-latency C++ implementation on the CPU, and a high-throughput GPU-accelerated implementation. Both of these variants can be accessed through a simple Python API. We demonstrate mjorbit by solving several realistic space manipulation case studies with both real-time model-predictive control and reinforcement learning. Open-source code and examples are available on GitHub.

mjorbit extends MuJoCo with orbital state, spacecraft actuators and sensors, and passive environment forces and torques, while keeping MuJoCo's articulated-body dynamics, contact solver, and MJCF modeling workflow. The reference orbit (R, V) is propagated in an Earth-centered inertial frame, while MuJoCo runs in an orbit-following world frame whose origin tracks the reference orbit and whose axes stay parallel to ECI. This single design choice — the orbit-following frame combined with a cancellation-resistant (Encke) formulation of differential gravity — is what keeps long-horizon physics accurate even in single precision on the GPU.

Each mjo_step projects per-body wrenches (differential gravity, J₂, atmospheric drag, solar radiation pressure, gravity-gradient, magnetic, and actuator torques) into MuJoCo's generalized forces, lets MuJoCo solve the constrained multibody dynamics, then advances the actuator and orbit states and refreshes the environment caches. The CPU backend runs this as a MuJoCo engine plugin for low-latency control; the GPU backend (mjorbit-warp) realizes the identical pipeline as fused MJWarp kernels for massively parallel rollouts. Both share one Python API.

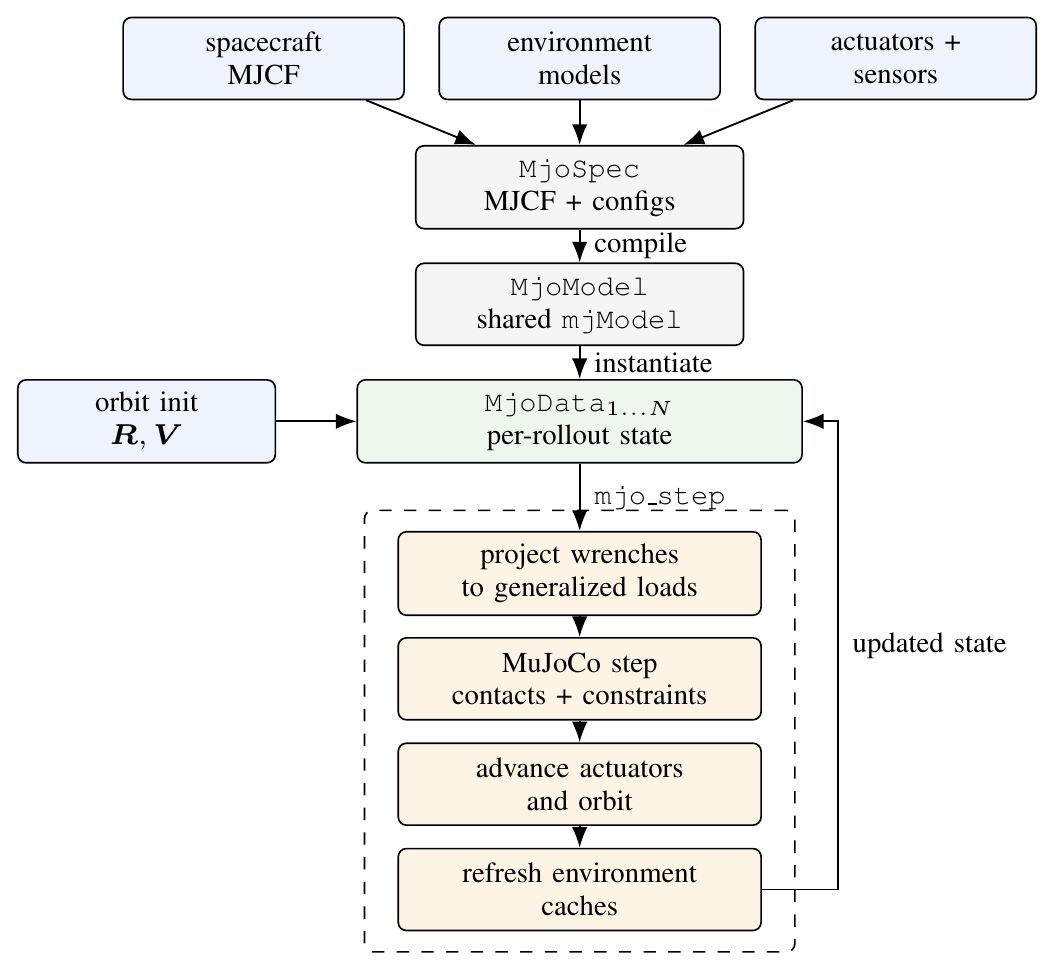

Software pipeline, shared by the CPU and GPU backends. Spacecraft MJCF and actuator, sensor, and environment configs are composed into an editable MjoSpec, compiled into a shared MjoModel, and instantiated as one or more independent MjoData states, each seeded with a reference-orbit state. Each mjo_step projects body wrenches into MuJoCo's generalized forces, advances the contact dynamics, propagates the actuator and orbit states, and refreshes the environment caches for the next step.

Minimal example

import numpy as np

from mujoco_orbit import MjoModel, OrbitInit, mjo_step
from mujoco_orbit.constants import GM_EARTH, R_EARTH
from mujoco_orbit.testdata import FREE_BODY_XML

# Circular LEO orbit at 400 km altitude.
radius_km  = R_EARTH + 400.0
speed_km_s = np.sqrt(GM_EARTH / radius_km)
orbit = OrbitInit(
    R_eci=[radius_km, 0.0, 0.0],
    V_eci=[0.0, speed_km_s, 0.0],
)

# Compile model from MJCF; allocate per-rollout data.
model = MjoModel.from_xml_path(FREE_BODY_XML, mj_timestep=0.01)
data  = model.make_data(orbit=orbit)

# Step the coupled orbit and rigid-body dynamics.
mjo_step(model, data)
print(data.time, data.qpos[:3])

We demonstrate mjorbit on four on-orbit scenarios that exercise both the low-latency CPU backend for real-time control and the GPU backend for large-scale reinforcement learning. Interactive browser demos ship with the code (pixi run viewer); rendered clips of each scenario are shown below (click any to expand).

A common shortcut for space robotics is to simply disable gravity in an off-the-shelf rigid-body engine. This is fine over seconds, but over an orbit the missing differential gravity changes the answer qualitatively. We also study how the choice of multibody world frame and integrator interacts with floating-point precision — the regime that matters for single-precision GPU simulation.

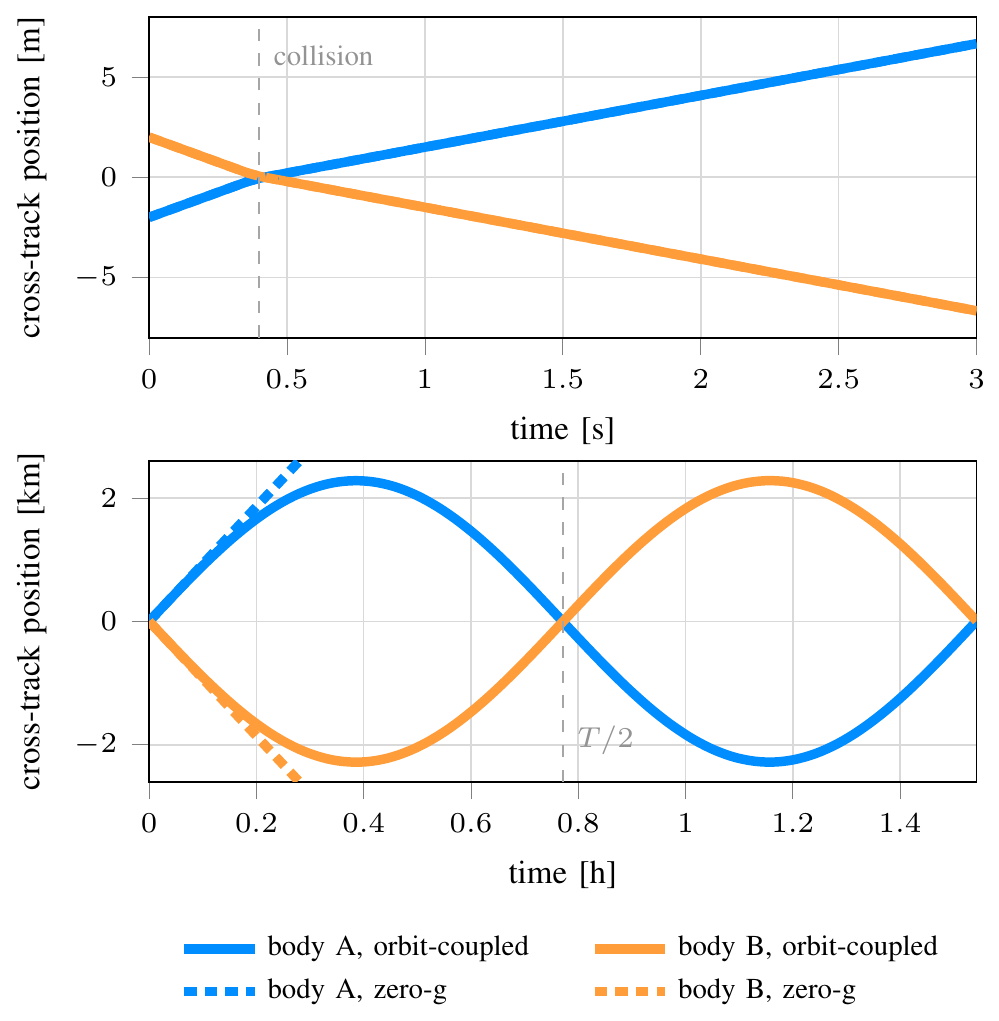

Orbit coupling matters over long horizons. Cross-track position of two free-floating boxes after impact, orbit-coupled (solid) vs. a zero-gravity baseline (dashed). Top: across the contact event the two agree. Bottom: over one orbit, the orbit-coupled bodies follow a bounded oscillation and recross at T/2, while the zero-g simulation drifts without bound.

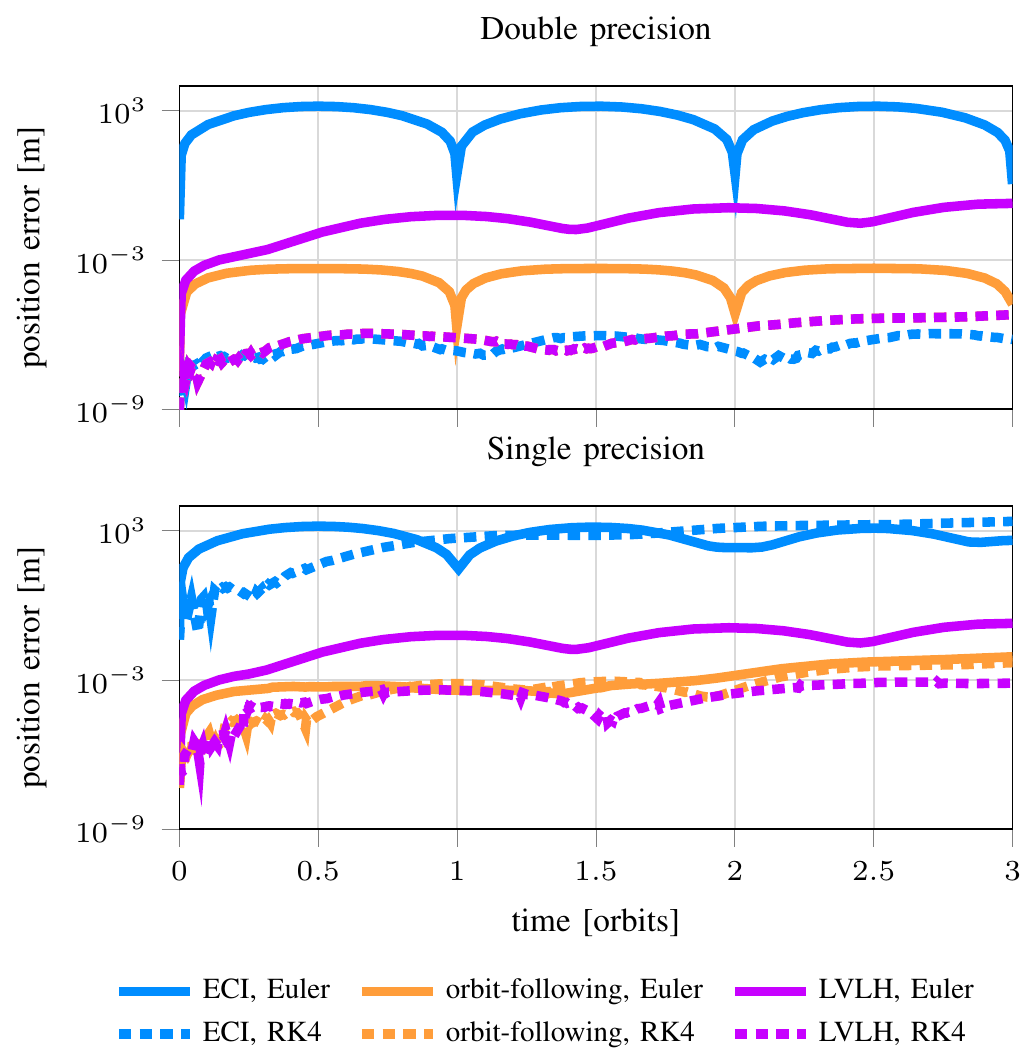

Frame choice + precision. Position error of a single spacecraft under three frames (ECI, orbit-following, LVLH) and two integrators (symplectic Euler, RK4). In double precision RK4 is sub-millimeter in any frame; in single precision only local frames stay accurate, and the orbit-following frame reaches millimeter accuracy with just a first-order symplectic integrator.

On a standard MuJoCo humanoid in microgravity with self-contact and 16 drag/SRP surfaces enabled, mjorbit adds only a 20–30% runtime overhead over the corresponding gravity-only MuJoCo baseline for full orbital propagation and environmental wrenches — modest given the added differential gravity, per-body environmental forces, and reference-orbit propagation.

The low-latency CPU path serves real-time control; the massively parallel GPU path supports reinforcement learning and batch evaluation — reaching roughly 64% (CPU peak) to 87% (GPU peak) of the corresponding vanilla-MuJoCo throughput.

mjorbit is, to our knowledge, the first open-source space-robot simulator to combine orbital dynamics and environmental perturbations with high-throughput CPU- and GPU-parallel multibody contact behind a single robotics-style API.

The citation will be updated once the preprint is posted.

@article{zhang2026mjorbit,
  title   = {mjorbit: A Simulation Framework for Space Robotics},
  author  = {Zhang, John Z. and Verhagen, Joris and Vega, Fausto
             and McKeen, Patrick and Manchester, Zachary},
  journal = {arXiv preprint},
  year    = {2026},
  url     = {https://github.com/johnzhang3/mjorbit}
}
